Lite Links
The lightest-weight tailwheel steering spring system on the market for RV’s and other experimental taildraggers… at 120 grams (4.2 ounces) total installed weight.
—Link bodies, tongue, and tang are made from Grade 5 Titanium.
—Springs, cables, and terminals made from stainless to prevent corrosion and discoloration.
—Bronze pivot bushings on each end for a consistent and smooth action.
—Optional rudder-horn drop-spacers included for fairing clearance.
—Assembly tools and all attach hardware are included.
Manufactured with pride in the USA
The “Standard RV FSTW” is sized for the typical full swivel tailwheel on RV4-14 aircraft, and will allow tight, slack, or in-between installation.
Select custom length if ordering for installation on a different configuration.
The lightest-weight tailwheel steering spring system on the market for RV’s and other experimental taildraggers… at 120 grams (4.2 ounces) total installed weight.
—Link bodies, tongue, and tang are made from Grade 5 Titanium.
—Springs, cables, and terminals made from stainless to prevent corrosion and discoloration.
—Bronze pivot bushings on each end for a consistent and smooth action.
—Optional rudder-horn drop-spacers included for fairing clearance.
—Assembly tools and all attach hardware are included.
Manufactured with pride in the USA
The “Standard RV FSTW” is sized for the typical full swivel tailwheel on RV4-14 aircraft, and will allow tight, slack, or in-between installation.
Select custom length if ordering for installation on a different configuration.
The lightest-weight tailwheel steering spring system on the market for RV’s and other experimental taildraggers… at 120 grams (4.2 ounces) total installed weight.
—Link bodies, tongue, and tang are made from Grade 5 Titanium.
—Springs, cables, and terminals made from stainless to prevent corrosion and discoloration.
—Bronze pivot bushings on each end for a consistent and smooth action.
—Optional rudder-horn drop-spacers included for fairing clearance.
—Assembly tools and all attach hardware are included.
Manufactured with pride in the USA
The “Standard RV FSTW” is sized for the typical full swivel tailwheel on RV4-14 aircraft, and will allow tight, slack, or in-between installation.
Select custom length if ordering for installation on a different configuration.

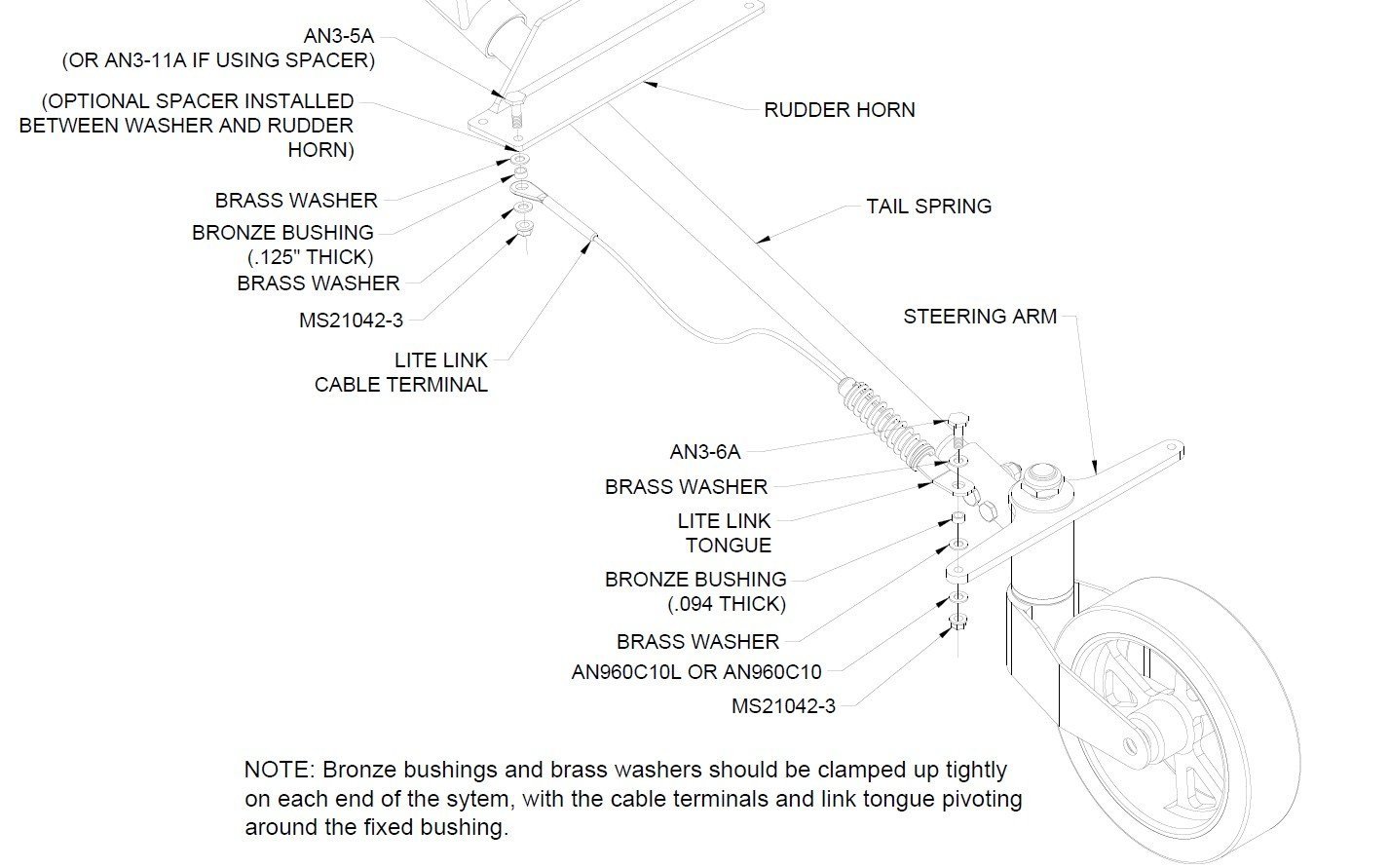

Installation Diagram
